BALL VALVE - DIVERSITECH
Full bore long-stem 28mm compression ball valve with nickel-plated brass valve body and red handle to be used in water applications.
DESIGNED BY DIVERSITECH FOR AIR SOURCE HEAT PUMP INSTALLS
Part No Content
Part Name: BV-28-28-COMP-AGSTEM
Description: Full bore long-stem 28mm compression ball valve
Part Code: BV-28-28-COMP-AGSTEM
Size depth x width: 87.2mm length - Handle length 113mm - Middle bore to handle 69.3mm
- Connection: Compression
- Material: Nickel-plated brass
- Working temperature: -10°C to 85°C
- Pressure range: 16 bar at 30° C, 10 bar at 65° C and 8 bar at 85° C
- Size: 28mm
- Type: Full bore ball valve
- Compression complies with BS EN1254-2
- Pressure test under 0.6-0.8 MPa without any leakage
- Suitable for hot and cold water
- Working pressure: 1.6 MPa

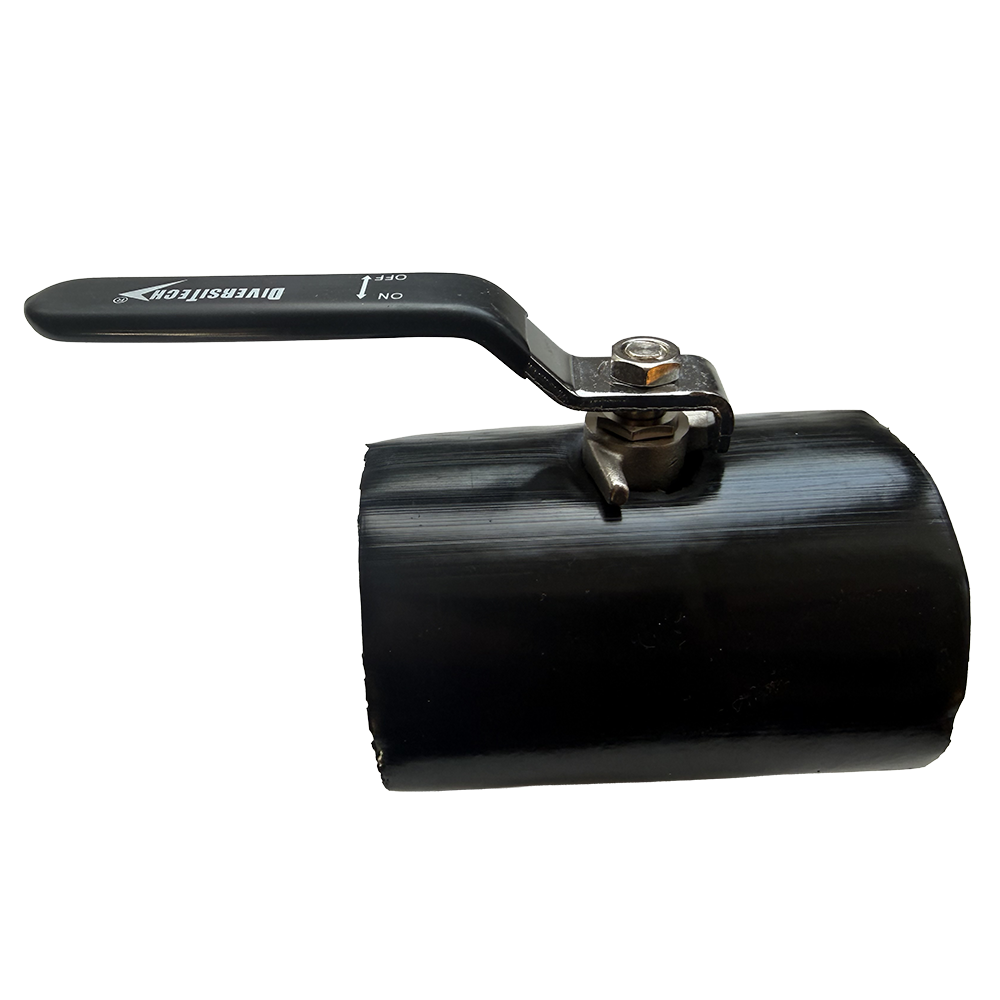

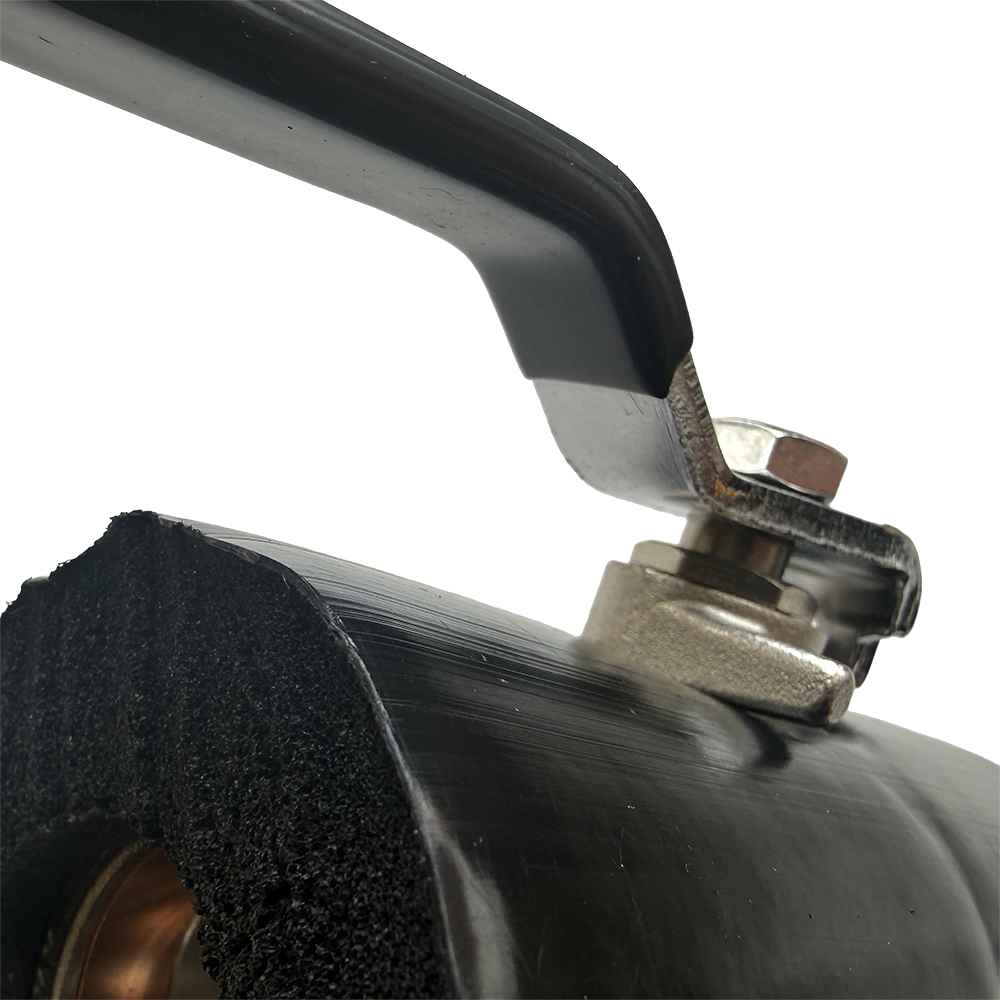

- Long stemmed for use with ASHP insulation 19mm - 25mm thick
