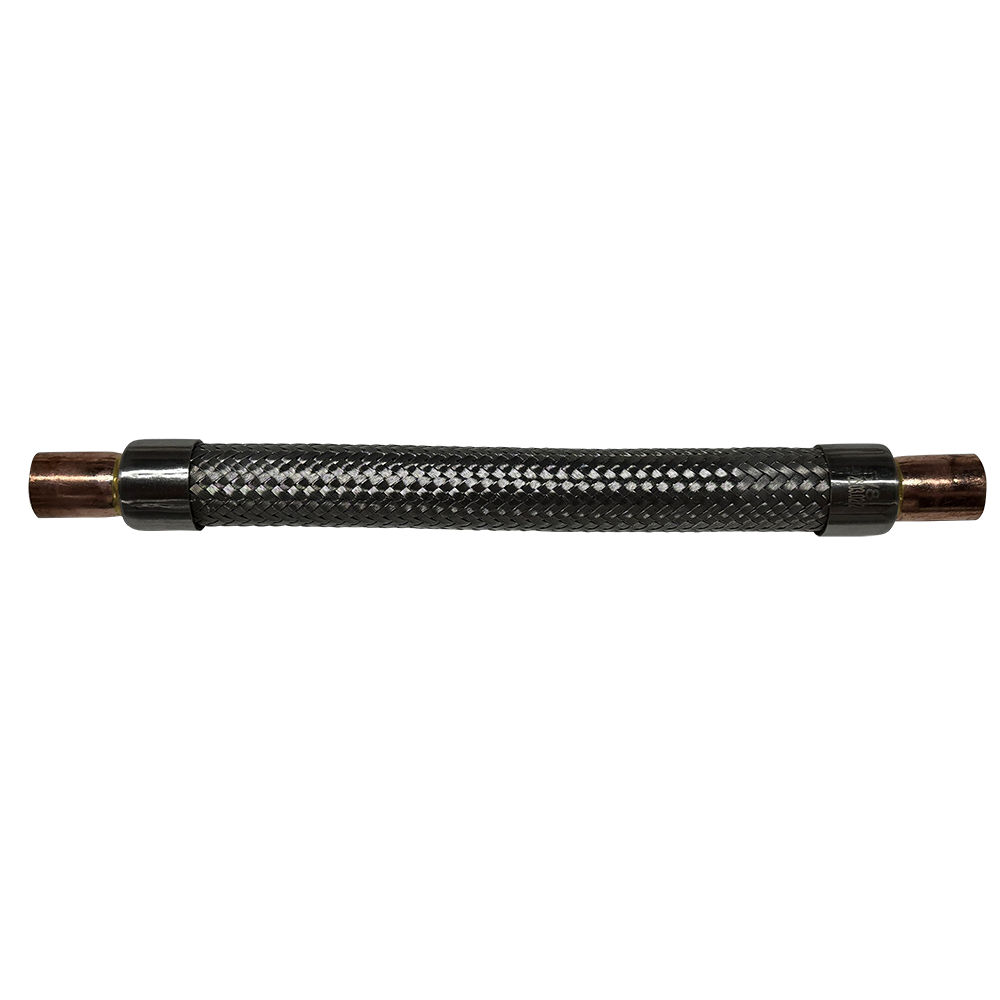

VIBRATION ABSORBER
Designed for the installation of the suction and discharge lines of air conditioning and refrigeration systems. Used to dampen compressorinduced vibrations and reduce the damage to the system’s pipe work
Part No Content
Part Name: VIBA-1/4
Description: Vibration Absorber 1/4 (6mm)
Tube OD mm: 6mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-3/8
Description: Vibration Absorber 3/8 (10mm)
Tube OD mm: 10mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-1/2
Description: Vibration Absorber 1 /2 (12mm)
Tube OD mm: 12mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-5/8
Description: Vibration Absorber 5/8 (7 6mm)
Tube OD mm: 16mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-3/4
Description: Vibration Absorber 3/4 (18mm)
Tube OD mm: 18mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-7/8
Description: Vibration Absorber 7 /8 (22mm)
Tube OD mm: 22mm
Max working pressure PsiG: 650 (44.8 bar)
Burst pressure PsiG: 3250 (224 bar)
Part Name: VIBA-1-1/8
Description: Vibration Absorber 1-1 /8 (28mm)
Tube OD mm: 28mm
Max working pressure PsiG: 600 (41.3 bar)
Burst pressure PsiG: 3000 (206.8 bar
Part Name: VIBA-1-3/8
Description: Vibration Absorber 1-3/8 (35mm)
Tube OD mm: 35mm
Max working pressure PsiG: 550 (37.9 bar)
Burst pressure PsiG: 2750 (189.6 bar)
Part Name: VIBA-1-5/8
Description: Vibration Absorber 1-5/8 (42mm)
Tube OD mm: 42mm
Max working pressure PsiG: 510 (35.1 bar)
Burst pressure PsiG: 2550 (175.8 bar)
Part Name: VIBA-2-1/8
Description: Vibration Absorber 2-1 /8 (54mm)
Tube OD mm: 54mm
Max working pressure PsiG: 400 (27.5 bar)
Burst pressure PsiG: 2000 (7 37.8 bar)
Part Name: VIBA-2-5/8
Description: Vibration Absorber 2-5/8 (64mm
Tube OD mm: 64mm
Max working pressure PsiG: 350 (24.1 bar)
Burst pressure PsiG: 1750 (120.6 bar)
Part Name: VIBA-3-1/8
Description: Vibration Absorber 3-1 /8 (76mm)
Tube OD mm: 76mm
Max working pressure PsiG: 320 (22.0 bar)
Burst pressure PsiG: 1600 (710.3 bar)
Part Name: VIBA-3-5/8
Description: Vibration Absorber 3-5/8 (89mm)
Tube OD mm: 89mm
Max working pressure PsiG: 190 (13.1 bar)
Burst pressure PsiG: 570 (39.3 bar)
Part Name: VIBA-4-1/8
Description: Vibration Absorber 4-1 /8 (108mm)
Tube OD mm: 108mm
Max working pressure PsiG: 190 (13.1 bar)
Burst pressure PsiG: 570 (39.3 bar)
