CANTILEVER ARMS - CANTILEVER ARM KITS
These ready-made, hot-dipped galvanised steel cantilever arms with 14mm diameter holes, offer a quick and easy method of supporting condensing units on external walls. Available in straight or webbed versions, in a variety of lengths. This is a low cost option to mounting AC units or ASHP’s. The cantilever arm kits come with all of the fixings needed for a quick and easy installation.
Part No Content

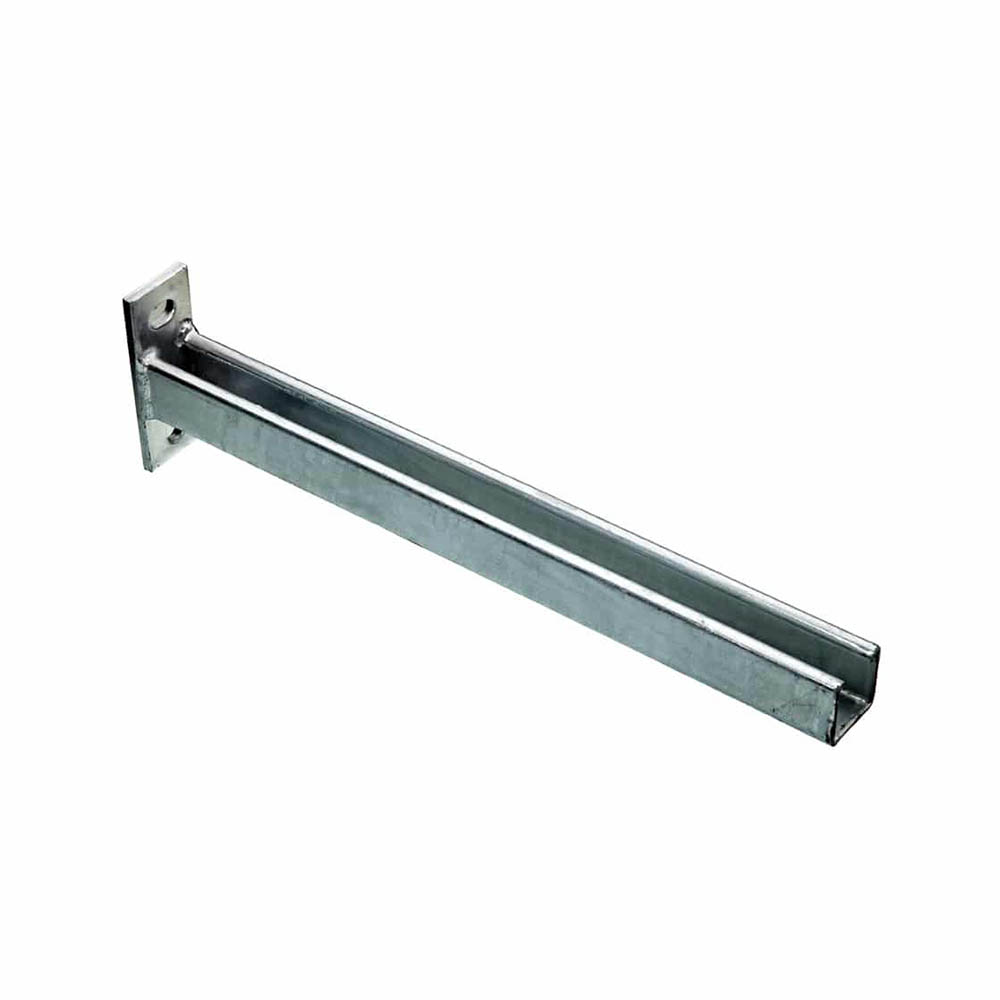

Part Name: CA-150-S
Description: Cantilever arm – Single 150mm
Weight: 0.8kg
Safe working load: 250kg
Length mm: 150mm
Part Name: CA-300-S
Description: Cantilever arm – Single 300mm
Weight: 1kg
Safe working load: 250kg
Length mm: 300mm
Part Name: CA-450-S
Description: Cantilever arm – Single 450mm
Weight: 1.4kg
Safe working load: 250kg
Length mm: 450mm
Part Name: CA-600-S
Description: Cantilever arm – Single 600mm
Weight: 2kg
Safe working load: 190kg
Length mm: 600mm
Part Name: CA-750-S
Description: Cantilever arm – Single 750mm
Weight: 2.4kg
Safe working load: 150kg
Length mm: 750mm
Part Name: CA-900-S
Description: Cantilever arm – Single 900mm
Weight: 3kg
Safe working load: 120kg
Length mm: 900mm

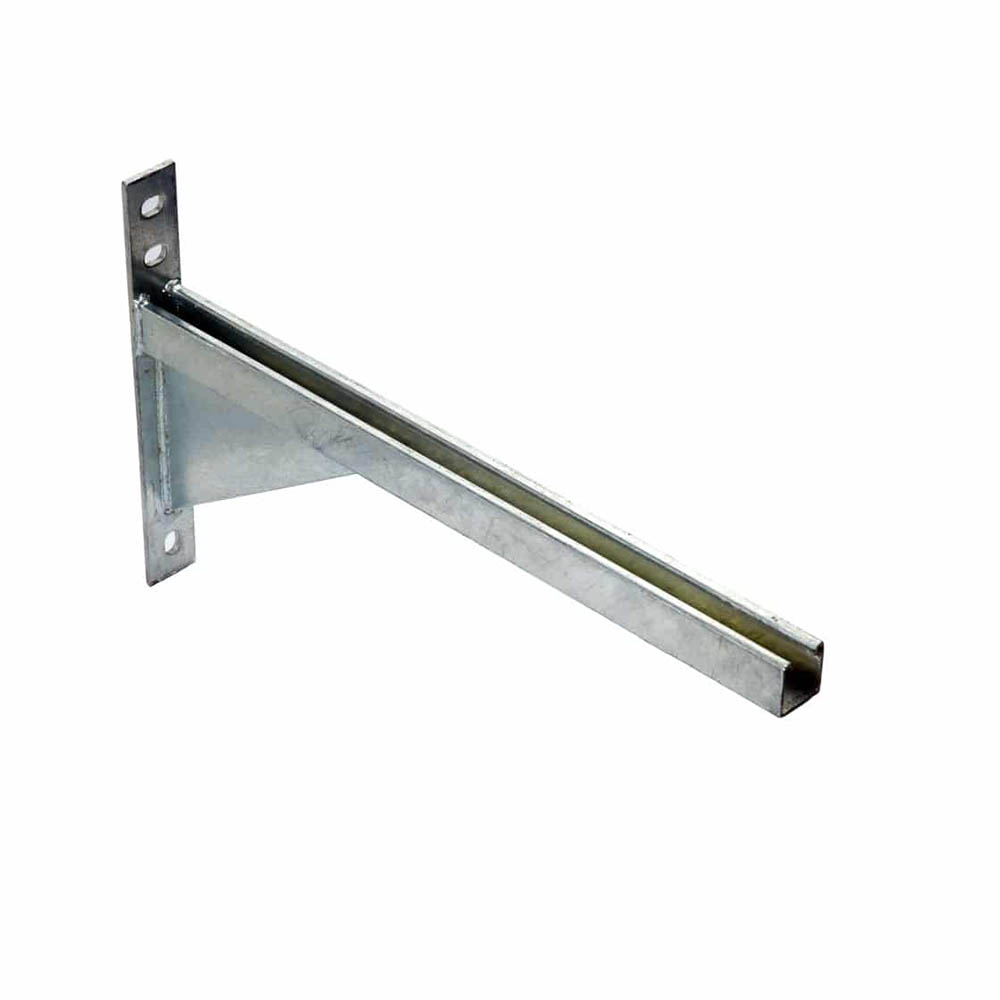

Part Name: CA-600-W
Description: Cantilever arm – Webbed 600mm
Weight: 2.6kg
Safe working load: 190kg
Length mm: 600mm
Part Name: CA-750-W
Description: Cantilever arm – Webbed 750mm
Weight: 3kg
Safe working load: 150kg
Length mm: 750mm
Part Name: CA-950-W
Description: Cantilever arm – Webbed 950mm
Weight: 3kg
Safe working load: 150kg
Length mm: 950mm
Part Name: CA-1200-W
Description: Cantilever arm – Webbed 1200mm
Weight: 3kg
Safe working load: 150kg
Length mm: 1200 mm
Part Name: CA-600-D
Description: Cantilever arm – Double 600mm
Weight: 3.7kg
Safe working load: 243kg
Length mm: 600mm
Part Name: CA-750-D
Description: Cantilever arm – Double750mm
Weight: 4.5kg
Safe working load: 205kg
Length mm: 750mm
Part Name: CA-900-D
Description: Cantilever arm – Double 900mm
Weight: 5.6kg
Safe working load: 140kg
Length mm: 900mm
Part Name: CA-1200-D
Description: Cantilever arm – Double 1200mm
Weight: 5.6kg
Safe working load: 140kg
Length mm: 1200mm
Part Name: CA-450-KIT
Description: Cantilever arm kit - 450mm
Weight: 8kg
Safe working load: 250kg per arm
Height or equivalent: 750mm
Width: 41mm
Length or equivalent: 450mm
Part Name: CA-600-KIT
Description: Cantilever arm kit - 600mm
Weight: 9kg
Safe working load: 190kg per arm
Height or equivalent: 750mm
Width: 41mm
Length or equivalent: 600mm
Part Name: CA-750-HKIT
Description: Cantilever arm kit - 750mm
Weight: 8kg
Safe working load: 250kg per arm
Height or equivalent: 750mm
Width: 41mm
Length or equivalent: 750mm
Part Name: CA-900-KIT
Description: Cantilever arm kit - 900mm
Weight: 8kg
Safe working load: 250kg per arm
Height or equivalent: 900mm
Width: 41mm
Length or equivalent: 900mm
